LCV Fill & Decant Posts
Single arm, dual arm and auto-cut @ 200 bar fill posts for filling mobile cascades and vehicles — supplied with Coriolis flowmeter or without flowmeter.
Up to 1,200 kg/hrFlowmeter ±0.5%250 bar operatingPESO approved
100+
LCV fill posts delivered
1,200 kg/hr
Rated flow capacity
±0.5%
Coriolis flowmeter accuracy
250 bar
Operating pressure
Overview
Fast, measured and safe filling at CNG and CBG sites

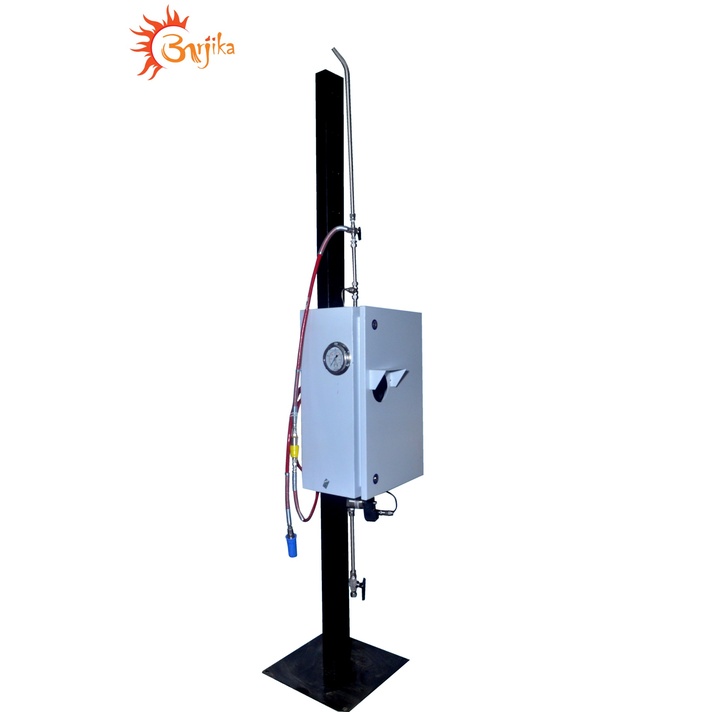

LCV fill posts transfer high-pressure gas from a compressor or storage cascade into mobile cascades, light commercial vehicles and cars. A decant post does the reverse — drawing gas from a mobile cascade into station storage or a booster.
Every Urjika fill post is built on a powder-coated steel column with a weatherproof instrument enclosure, SS 316 tubing and fittings, a high-accuracy pressure gauge and thermoplastic high-pressure hoses. Choose single arm, dual arm or the auto-cut system, with or without a Coriolis mass flowmeter for custody measurement.
Product range
Four configurations for every site
Compact · Reliable

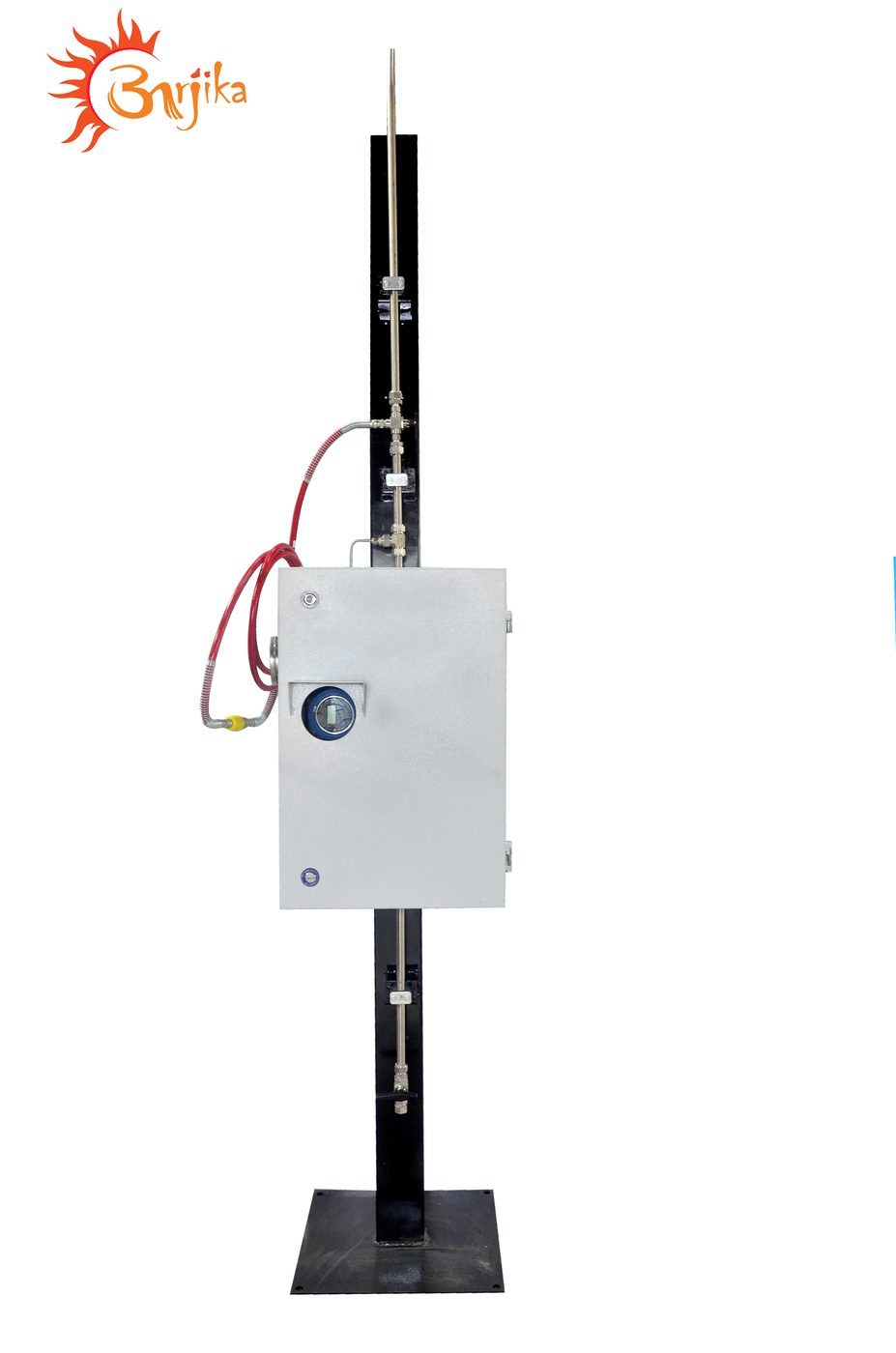

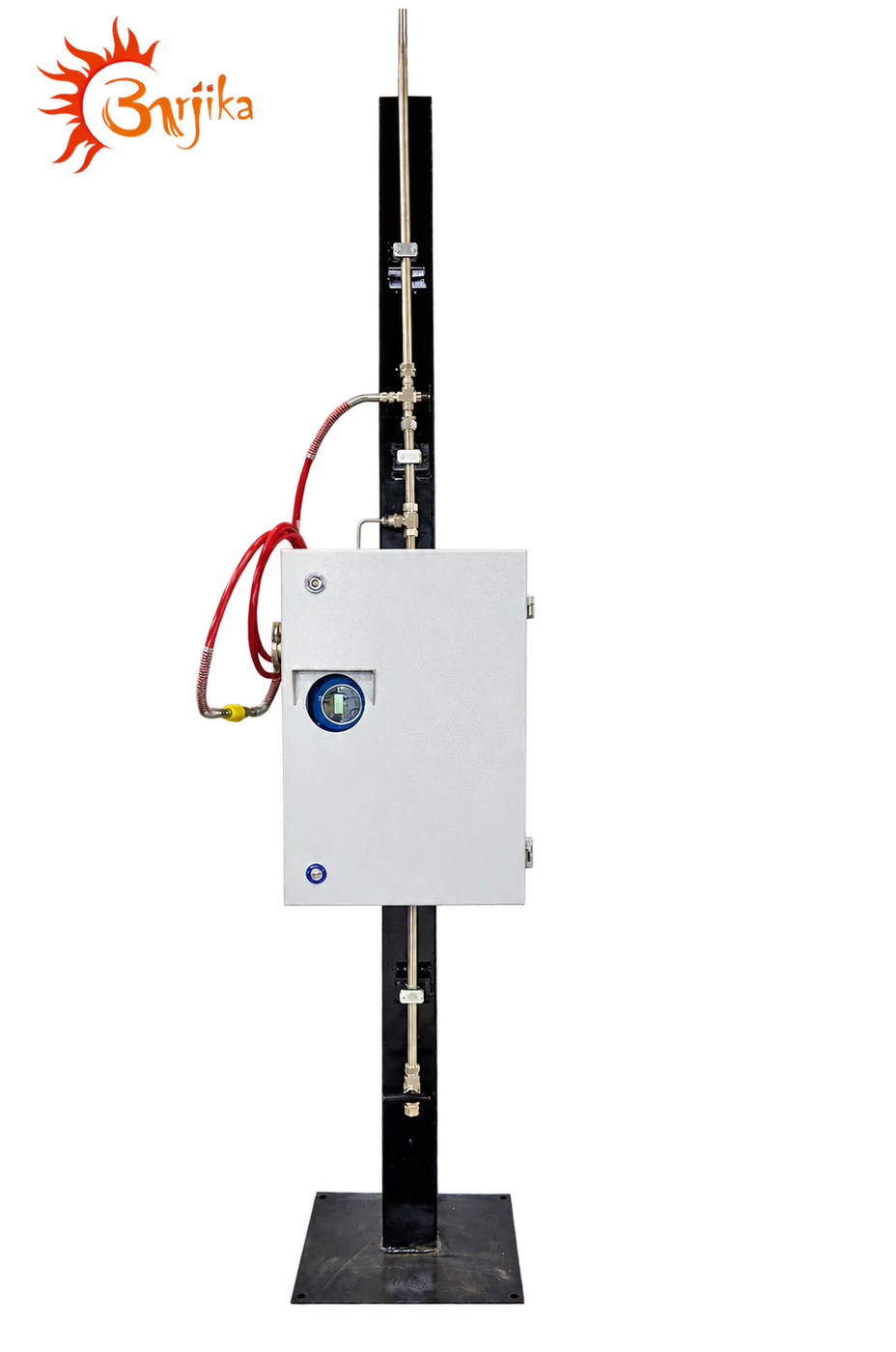

Single Arm
One filling arm with Coriolis flowmeter — the most common choice for CBG plants and mother stations.
Higher throughput

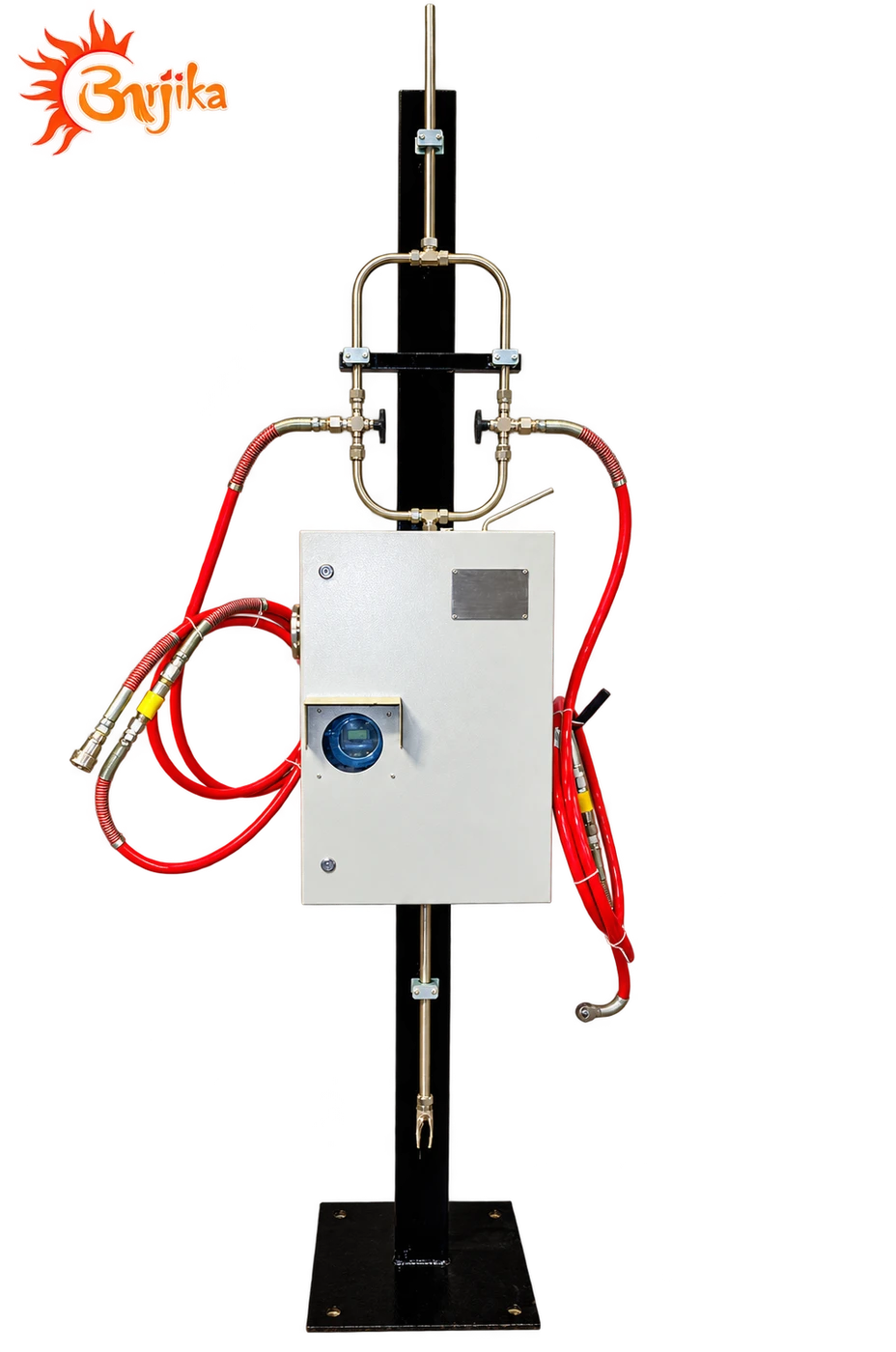

Dual Arm
Two independent arms fill two cascades or vehicles at once for maximum station efficiency.
Automatic

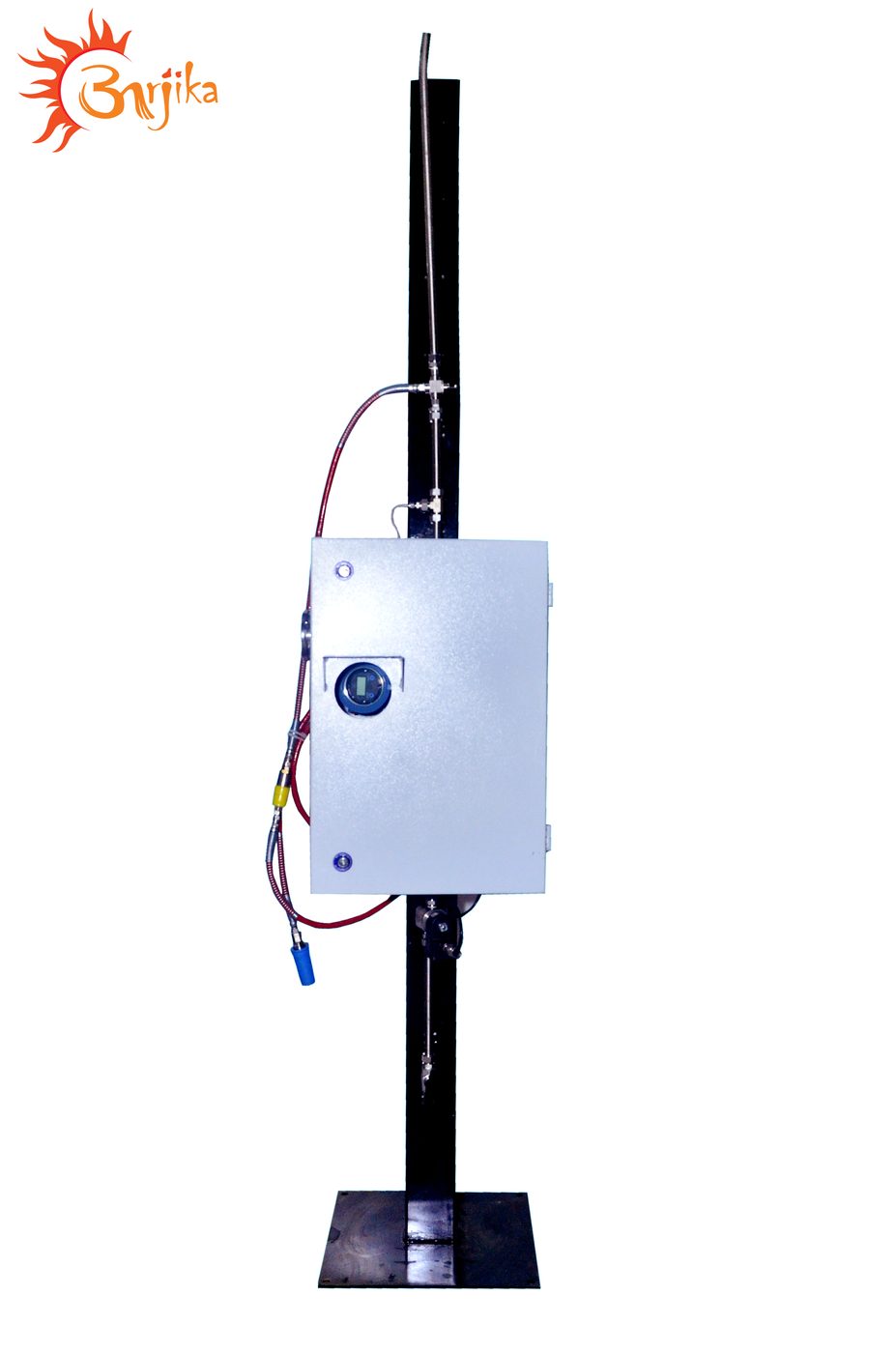

Auto-cut @ 200 bar
Pressure sensor and solenoid valve stop filling automatically at 200 bar — ideal for vehicle filling.
24 V DC control
NGV nozzle
Economical

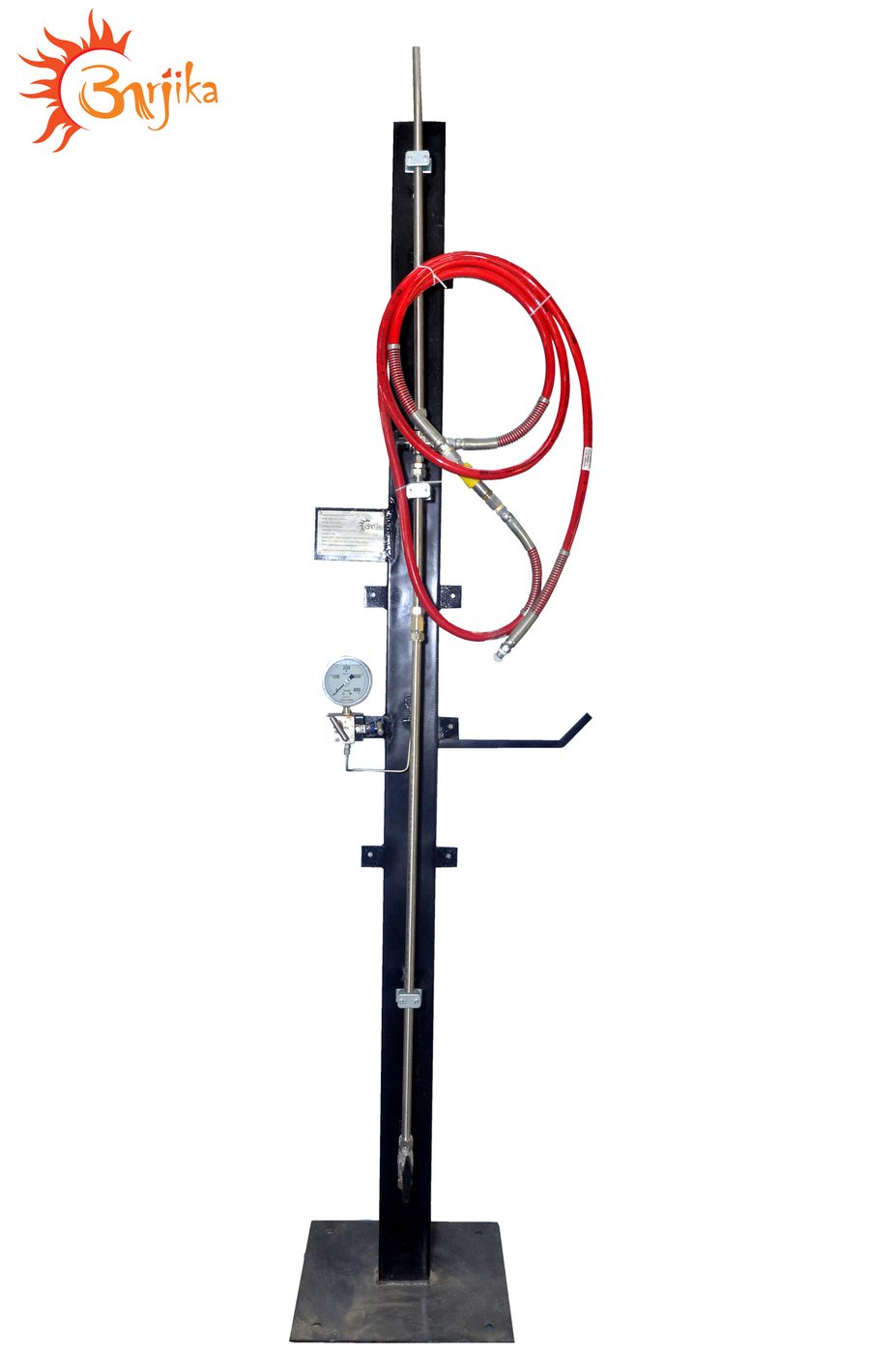

Without Flowmeter
For in-house transfers where custody metering is not required — same safety, lower cost.
Compare
Which fill post is right for you?
| Parameter | Single Arm | Dual Arm | Auto-cut @ 200 bar |
|---|---|---|---|
| Filling arms | 1 | 2 (simultaneous) | 1 |
| Typical use | Mobile cascade / vehicle filling | Higher throughput, two vehicles or cascades | Car / auto / LCV filling with automatic cut-off |
| Metering | Coriolis flowmeter (optional) | Coriolis flowmeter | Coriolis flowmeter |
| Shut-off | Manual 3-way ball valve | Manual 3-way ball valves | Automatic solenoid valve closes at 200 bar |
| Hose | 3/8" OR 1/2" upto 6cm, With Breakaway | 3/8" OR 1/2" upto 6cm, With Breakaway | 3/8" OR 1/2" upto 6cm, With Breakaway |
| Nozzle | QRC | QRC | NGV nozzle |
| Controls | Manual | Manual | Pressure sensor + SOV, 24 V DC |
Technical specifications
Common specifications
Performance
Operating pressure
250 bar
Flow capacity
Rated up to 1,200 kg/hr
Auto-cut pressure
200 bar (auto-cut model)
Ambient temperature
−15°C to +65°C
Metering
Flowmeter
Coriolis mass flowmeter (optional)
Accuracy
±0.5%
Approvals
PESO, W&M approved flowmeter
Communication
Modbus RS485 — SCADA compatible
Without flowmeter
Available for non-custody transfers
Mechanical
Tubing
SS 316, 3/4" OD × 0.095" and 1/4" OD × 0.035"
Fittings & valves
SS 316 double-ferrule, 2-way & 3-way ball valves
Pressure gauge
4" dial, 0–400 bar with 2-way manifold valve
Hose
1/2" or 3/8" ID thermoplastic, 5000 psi rated
Breakaway coupling
On fill hose
Nozzle options
QRC, car nozzle, NZS, bus nozzle
Structure & electrical
Column height
2,700 mm (standard)
Enclosure
Weatherproof MS powder-coated, 750 × 500 × 300 mm
Power supply
230 V AC ±10%, 50 Hz ±3%
Auto-cut control
230 V AC to 24 V DC, pressure sensor + SOV
Area classification
Suitable for hazardous-area installation
How auto-cut works
Filling stops itself at 200 bar
01
Connect nozzle
Operator connects NGV nozzle and opens the fill valve
02
Filling starts
Gas flows through the flowmeter to the vehicle
03
Pressure monitored
Pressure sensor continuously reads outlet pressure
04
Automatic shut-off
Solenoid valve closes at 200 bar — no over-filling
Applications
Where our fill posts are used
CBG Plants
Filling mobile cascades after compression for offtake.
CNG Mother Stations
Filling LCV/MCV mounted cascades for daughter stations.
Fleet Depots
Company LCV fleets and operational vehicles.
Decanting
Transferring gas from mobile cascades into station storage.
Gallery

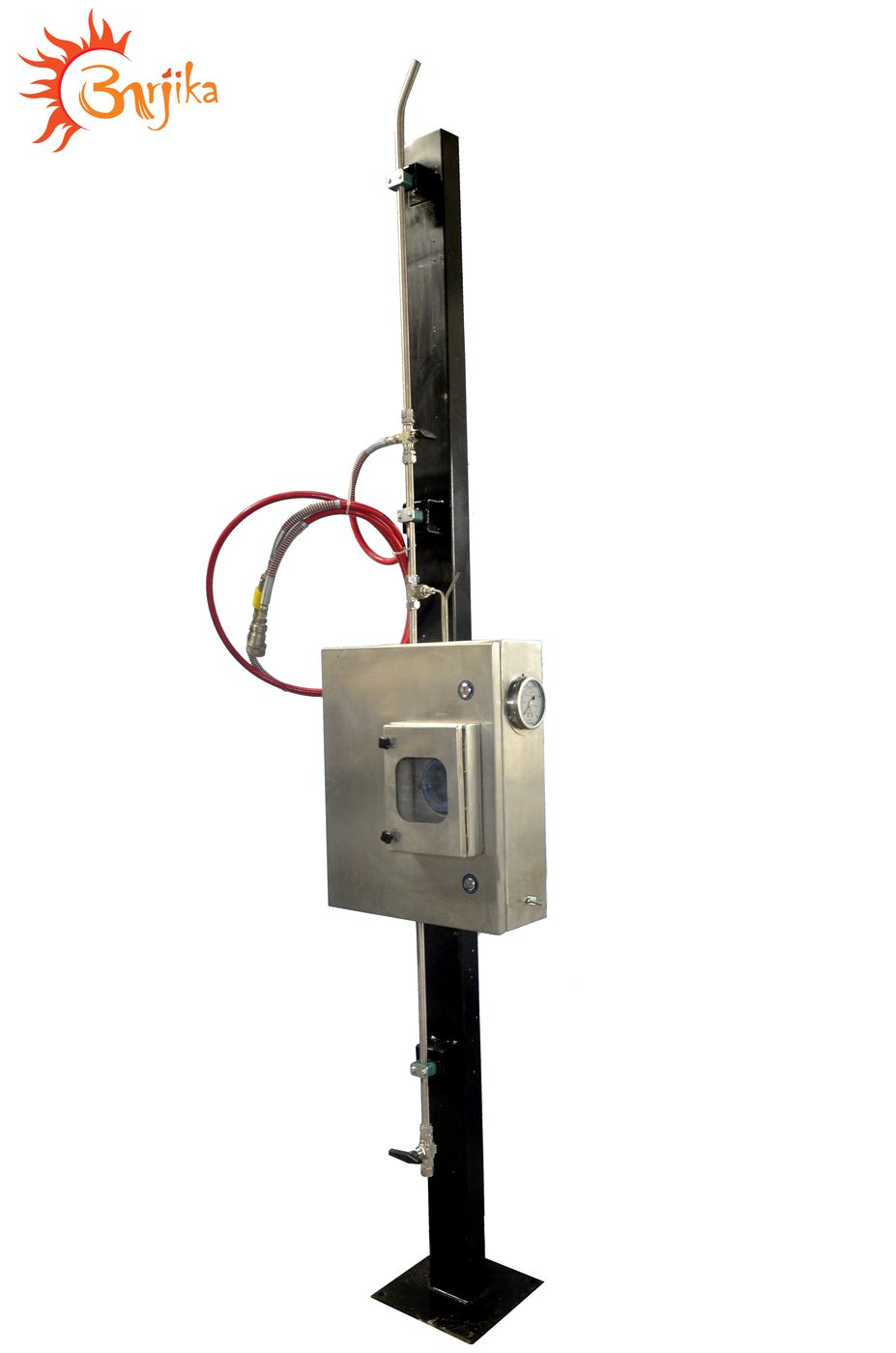

Our fill post range
Single arm, dual arm and auto-cut models — supplied with a Coriolis flowmeter or without one.
FAQ
Frequently asked questions
Q.Can I buy a fill post without a flowmeter?
Yes. For internal transfers where custody measurement is not needed, we supply the fill post without a flowmeter. It can be upgraded with a Coriolis meter later.
Q.Why choose the auto-cut system?
The auto-cut system closes a solenoid valve automatically when the vehicle reaches 200 bar, preventing over-filling and reducing dependence on operator attention.
Q.What is the difference between a fill post and a decant post?
A fill post fills cascades or vehicles from a compressor or storage. A decant post draws gas out of a mobile cascade into station storage or a booster. Our posts can be configured for either duty.
Q.Is the fill post SCADA compatible?
Yes. The Coriolis flowmeter supports Modbus RS485 communication for integration with station SCADA.
Planning an LCV filling setup?
Share your fleet and site details — we will recommend the right configuration.
