CNG/CBG Cascades

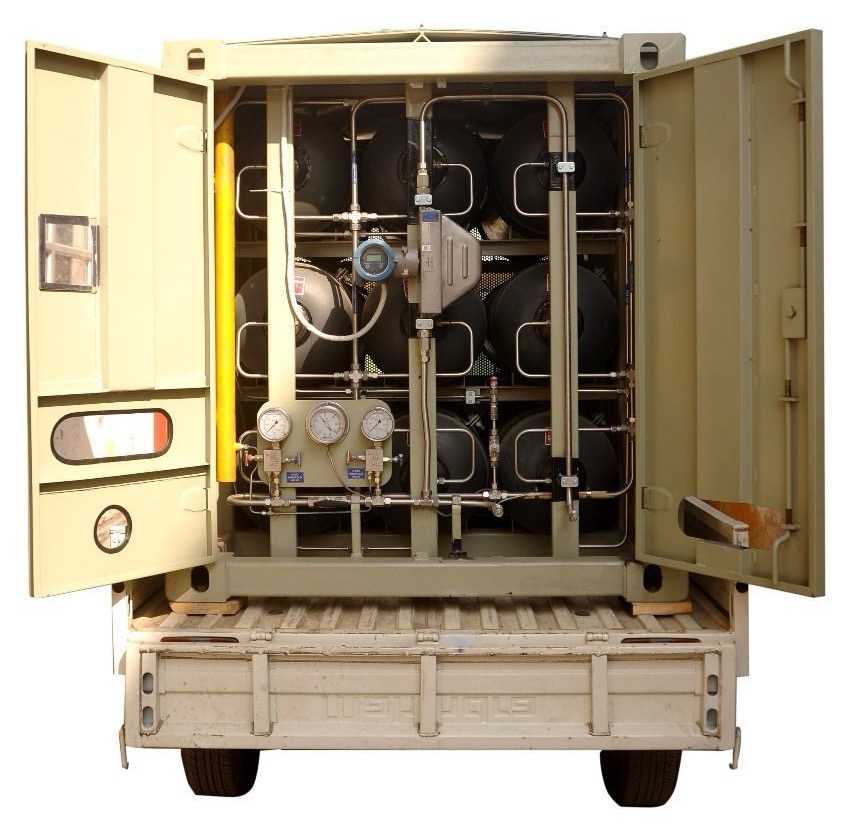

Type 3 CNG/CBG Cascade
Thin, lightweight aluminium-liner cylinders fully overwrapped with carbon composite, from 7200 WL to 9600 WL.
- Water capacity
- 7200 WL
- Cylinder configuration
- 200 WL × 36 cyl
- Dimensions L × B × H (m)
- 4.2 × 2.4 × 2.0
- Gas carrying capacity @ 250 bar & 15°C
- 1550 kg
- Cascade gas utilisation @ 85%
- 1317.5 kg
- Cascade weight
- 7.45 t
- Total weight with gas
- 9 t
₹64,20,000Price per unit
Our sales team confirms taxes, freight, lead time and delivery after you place your order. For more on this range, see the CNG/CBG Cascades page.
Compare models
All Type 3 CNG/CBG Cascade models and prices
| Capacity | Dimensions L × B × H (m) | Gas carrying capacity @ 250 bar & 15°C | Cascade gas utilisation @ 85% | Cascade weight | Total weight with gas | Price |
|---|---|---|---|---|---|---|
| 7200 WL · 200 WL × 36 cyl | 4.2 × 2.4 × 2.0 | 1550 kg | 1317.5 kg | 7.45 t | 9 t | ₹64,20,000 |
| 8400 WL · 200 WL × 40 cyl | 4.6 × 2.4 × 2.0 | 1800 kg | 1530 kg | 8.3 t | 10.1 t | ₹74,90,000 |
| 9600 WL · 200 WL × 48 cyl | 4.6 × 2.4 × 2.5 | 2050 kg | 1742.5 kg | 9.9 t | 11.95 t | ₹95,00,000 |
