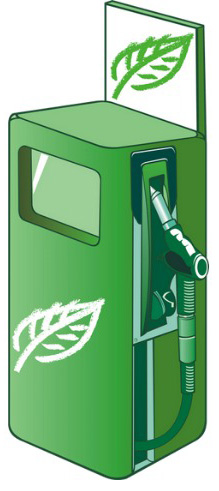

Hydrogen Dispenser

Hydrogen Dispenser
Configuration: High profile cabinet with single delivery hose, side mounted nozzle
Filling Pressure: 350bar
Maximum Working Pressure: 447bar (Flow meters MAWP limited to 447 bar).
Maximum Flow Rate: Up to 20 kg/minute
Operating Temperature Ranges: -4° F to +160° F (-20° C to +60° C)
Design Codes and Standards: NEC for Class 1, Division 2, Group B Hazardous Location ASME B31.3
Electrical Requirements: 120 VAC, 60 Hz, 3A or 220VAC, 50 Hz, 3A
Sequencing: Up to five bank AC signal output to sequencing panel
Dimensions (W*D*H): 33” W x 22” D x 92” H
Approximate Weight: 650 lbs
